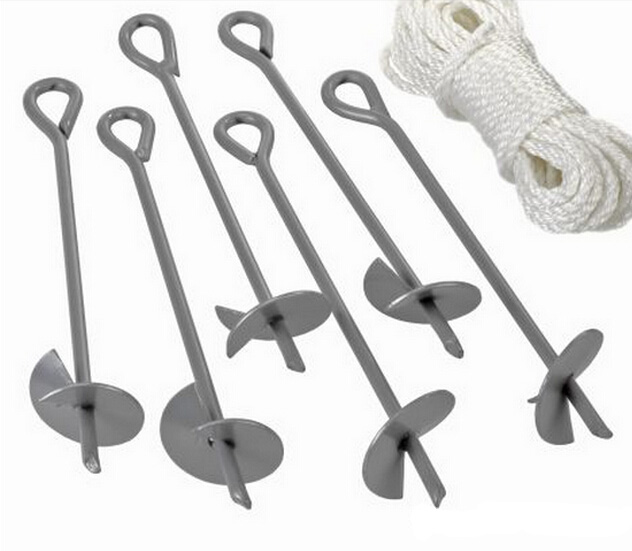

Spiral Ground Anchor Screw Piles for sheds , tents ,it is easy to dig hole by helical screw,Helical Anchors are factory-manufactured steel foundation system consisting of a central shaft with one or more helix-shaped bearing plates, commonly referred to as blades, welded to the lead section. Extension shafts, with or without additional helix plates, are used to extend the Anchor into competent load-bearing soils. Earth Auger are advanced ("screwed") into the ground with the application of torque.
Material : S 235 Carbon steel .
Treatment: Powder coated or high dip galvanized .
Metal Screw Anchor size:
| Pole Diameter | Whole Length | Disk Diameter | Disk Thickness |
| 3/4"(18 mm) | 36"(914 mm) | 8"(200 mm) | 3 mm |
| 3/4"(18 mm) | 48"(1219 mm) | 8"(200 mm) | 3 mm |
| 14 mm | 15"(381 mm) | 75 mm | 4 mm |
| 14 mm | 30"(762 mm) | 75 mm | 4 mm |
| 16 mm | 15"(381 mm) | 100 mm | 2 mm |
| 12 mm | 800 mm | 140 mm | 4 mm |
| 14 mm | 1000 mm | 180 mm | 4 mm |
Steel spiral Earth Anchor,Ground Anchor commonly used for securing small planes,vineyard trellises,storage sheds,tents,orchard and nursery trees swing sets,clothes lines,fences,retaining walls.
Ground Anchor are in use worldwide, securing famous structures , large dams and retaining walls , holding down underpasses and underground structures , establish wind turbine towers and preventing landslides.
